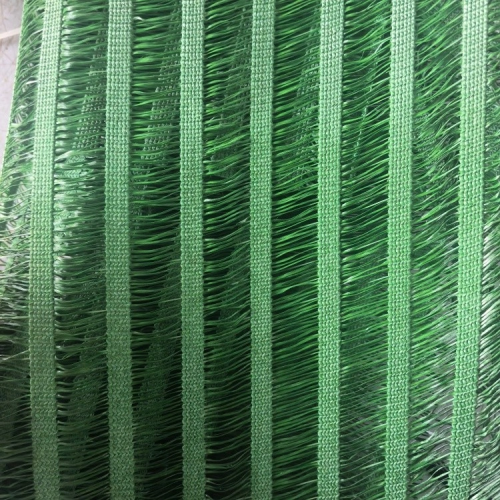

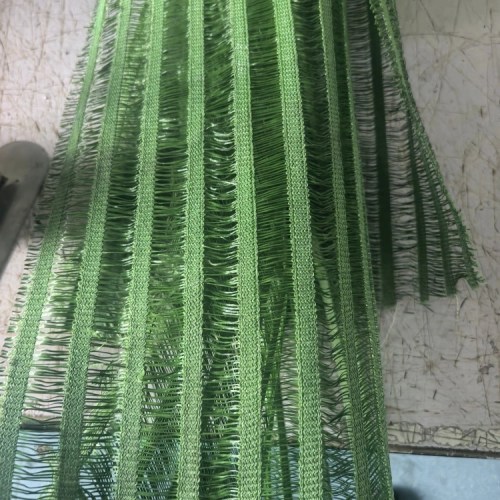

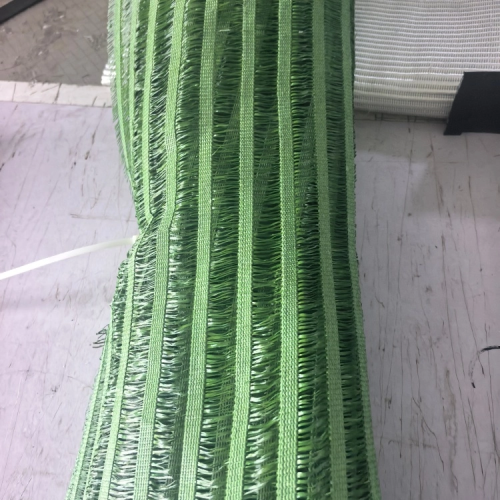

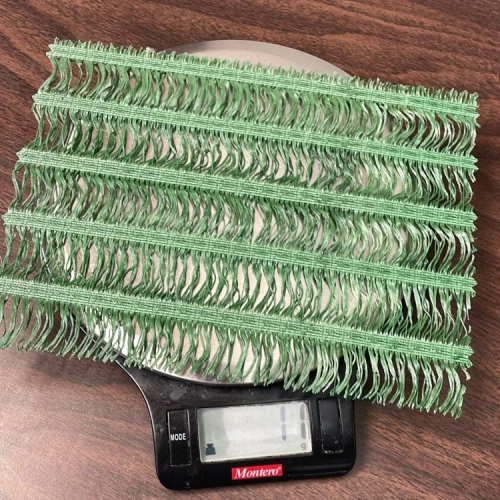

3D Warp-Knitted erosion control mat is a beautiful three-dimensional mesh with high elasticity and low friction resistance.It has an outer polymer coating thatresists aging and mechanical damage.Mainly used for edgegreening and restoration.
Core Definition
The 3D Warp-Knitted Erosion Control Mat, also known as a 3D Geomat Composite, is a three-dimensional mesh material manufactured using a specialized warp-knitting process. It is not simply bonded together but integrally formed through precision knitting. It provides a “skeleton” for slope ecological restoration and is a key material that perfectly combines “engineering protection” with “ecological greening.”
Core Characteristics & Advantages (Why is it High-End?)
Compared to ordinary heat-bonded 3D mats, 3D Warp-Knitted Mat has prominent advantages:
1. Superior Structure, Integrally Formed:

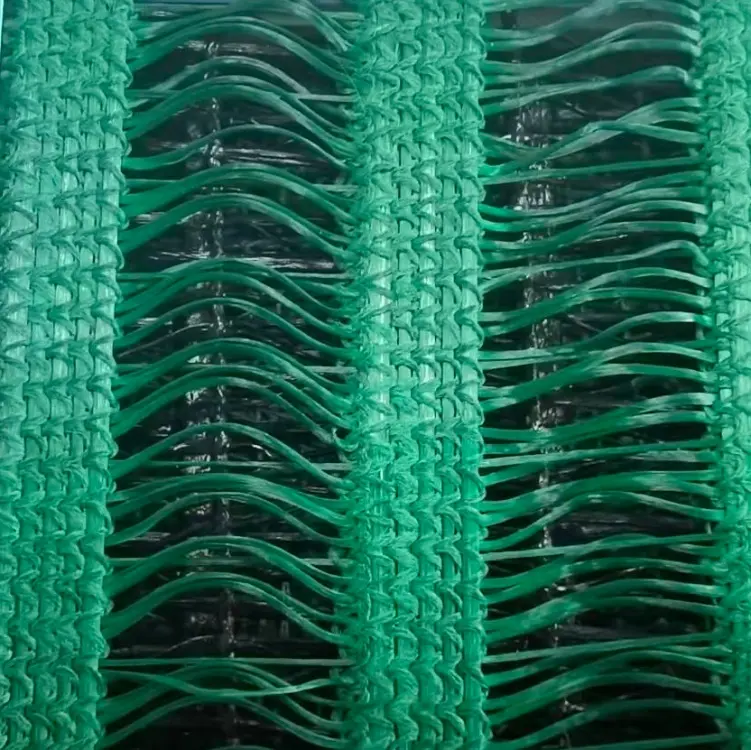

· Process: Produced on a double-needle bar Raschel knitting machine. Yarns are knitted into two parallel planar nets, connected by stitching yarns (pile fibers) reciprocating between them, forming the product in one step.
· Result: Creates a regular, uniform, and highly stable three-dimensional space. The pile fibers and the surface nets are a continuous, integrated whole with no bonded weak points.
2. Exceptional Mechanical Performance:
· High Tensile and Shear Strength: The knitted structure provides high joint strength, effectively resisting soil slippage and settlement on slopes.
· Long-Term Load-Bearing Without Collapse: The 3D cavity structure remains intact under soil cover and plant growth, providing lasting space for roots and preventing structural compaction and failure.
3. Composite Functional Design (Common Configuration):
· This products often combine the warp-knitted 3D net with a non-woven geotextile (or short fiber fleece) during production.
· Dual Function:
· Net: Provides reinforcement and 3D growing space.
· Fabric: Acts as a filter, retaining soil, water, and nutrients. It prevents fine particle loss and creates an ideal seedbed for germination.
4. Excellent Durability:
· Typically made from high-quality materials like UV-resistant polyester (PET), offering corrosion resistance, anti-aging properties, and a long design service life, suitable for permanent engineering works.
Primary Application Scenarios
This high-performance material is designed for demanding environments:
· Steep Rock or Soil Slopes: High-difficulty slope greening for highways, railways, and hydraulic projects.
· Mine Ecological Restoration: Sites with severe erosion and poor substrate conditions, such as open-pit mine spoil tips and tailings dams.
· Critical Riverbank Revetment: Combats water flow scour while re-establishing riparian vegetation.
· Landfill Covers & Tailings Pond Closure: Final cover projects requiring long-term, stable vegetative layers.
Standard Construction Process Summary
1. Slope Preparation: Clear, grade, and create a workable surface.
2. Mat Installation: Unroll from top to bottom, ensuring tight contact with the slope. Overlap adjacent rolls.
3. Anchoring: Secure firmly using U-pins or anchors, especially at the crest, toe, and overlaps.
4. Soil Placement / Hydroseeding: Cover the mat with growth media (soil), then apply a hydroseeding slurry—a mixture of seeds, fertilizer, binder, mulch, etc.—via high-pressure spraying.
5. Covering & Maintenance: Cover with erosion control blanket for moisture retention. Begin watering and management until vegetation is fully established, forming a composite protective layer.
Selection Recommendations
Choice should be based on project requirements and budget:
Comparison Point Haoke 3D Warp-Knitted Mat (High-End) Ordinary Heat-Bonded 3D Mat (Economical)
Core Process Double-needle bar warp knitting, integral forming Multi-layer mesh heat bonding
Structural Strength Exceptionally High, excellent integrity, peel-resistant Moderate, bonded nodes are weak points
Long-Term Performance Durable & Stable, cavities resist collapse May compact under sustained load
Cost Higher Lower
Suitable Projects Critical, permanent, steep slope projects General erosion control, gentle slopes, temporary/semi-permanent works
Summary
3D Warp-Knitted Erosion Control Mat represents its technical prowess. Utilizing advanced warp-knitting technology, it produces a high-strength, long-lasting, and functionally composite ecological protection material. It is not merely a carrier for “vegetation” but provides a slope with a long-term stable “ecological skeletal system,” ensuring the vegetative layer can persistently perform soil reinforcement, slope protection, and ecological restoration functions.
For specific project needs, it is strongly advised to:
1. Contact us Technology directly to obtain the latest product samples and technical specifications (e.g., models like EM2, EM3, EM4).
2. Provide project details (slope gradient, soil type, climate, design life, etc.) so their technical support team can recommend the most suitable product model and construction method.

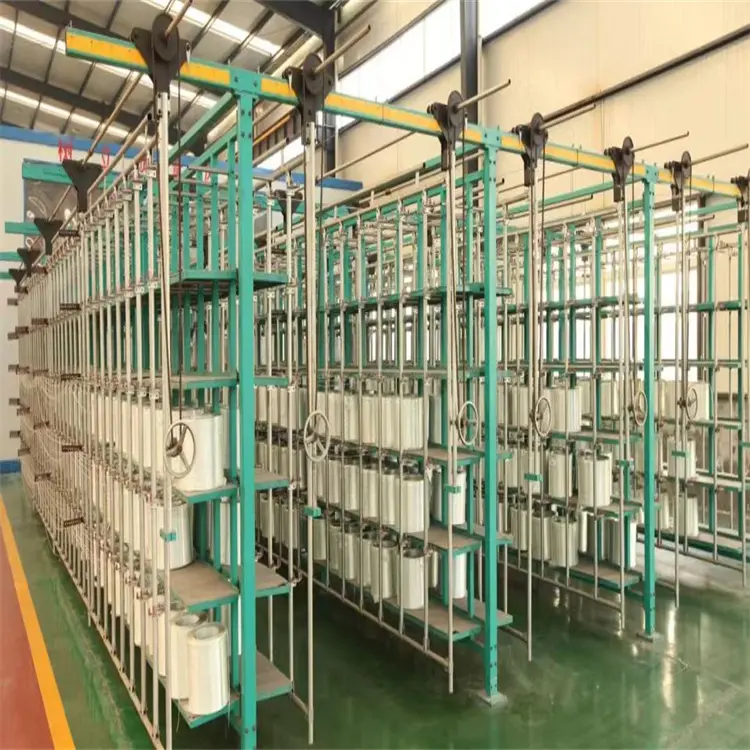

Our Production Line
