Product Details

Appication

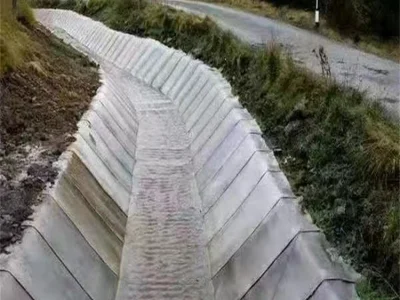

·Ecological ditches, rain ditches

·Mountain ditches, highway drainage ditches, temporarydiversion ditches

·Sewage ditch

Product Advantages

·The construction efficiency is equivalent to 20 times of the traditional masonry method

· Trench or slope laying does not require special cushion compaction treatment

· No on-site mortar mixing operation required

· Can work with water, can work in the rain

· Excellent frost resistance and weather resistance

·Low carbon and envirormental proteotion, greatly reducing sand and stone onsuption

· Simple and fast, shortening the construction cycle

· It can be used 24 hours after hydration without repeated curing

Comparison of Ditch Construction Methods
Installation Way		Content	Service Life	Auxiliary Tools	Working Hours	Features
Stone	Block Stone	Stone,Cement, Sand,etc.	25~40	Hammer Head,Shovel, Bricklayer’s Knife	1m3/one,d	Large quantities of sand and gravel need to be mined Expansion in winter,prone to dislocation and falling off
	Dressed Stone
	Stone Sheet
Concrete	Cast On Site	Sand,Stone,Cement, Accelerator,etc.	30~50	Mixer/truck,Paver,Vibrator, Mold,Inspection Equipment	100-300m2/one,d	Good durability Large equipment and manpower
	Prefabricated laying		20~30	Tile Knife,Rubber Hammer, Level Ruler	30-40m2/one,d	Foundation shaping and compaction are required Slow construction and long construction period
Cement Geomat		Fiber fabric, Special Cement Mixture	≥50	Art knife,Water Pipe,U-nail	400m2/one,d	Fast construction,saving people and labor No need for base treatment Adapt to base deformation Comprehensive cost advantage

Installing Method

Ditch design should be considered for trench construction, with full onsideration given to the width and dpth of the trench, and apropriate laying methods shbe selected to minimize waste.

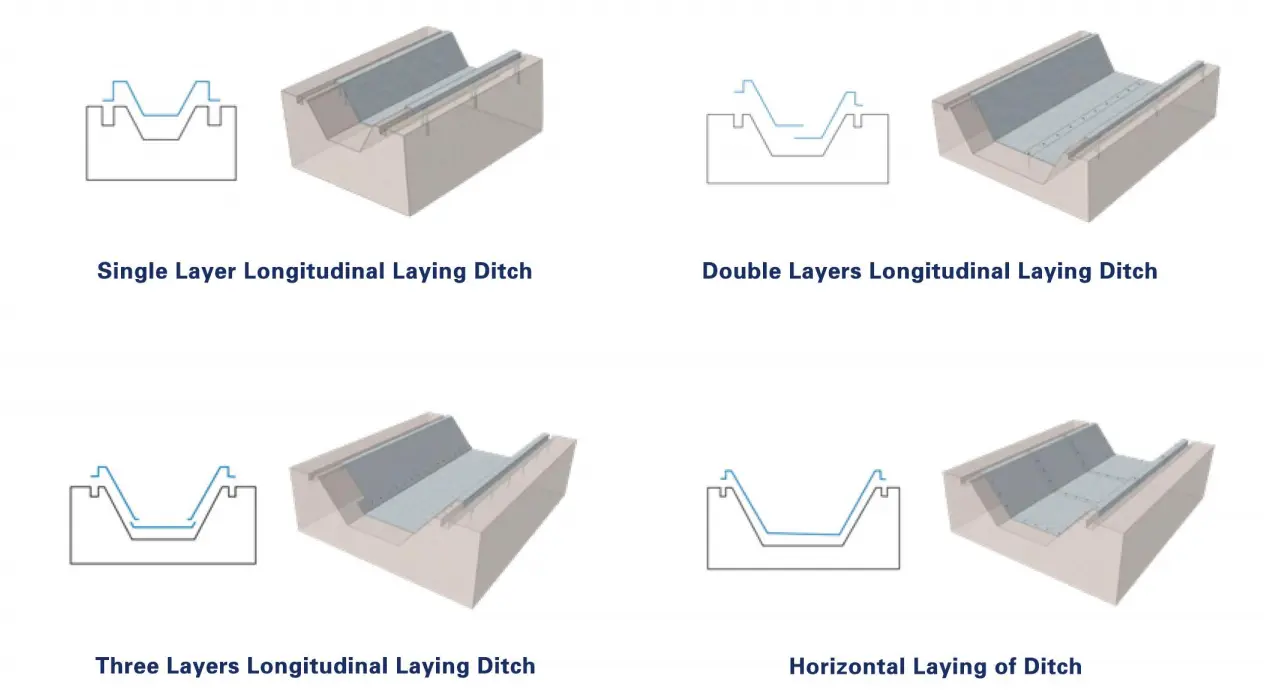

Below are four common paving examples.

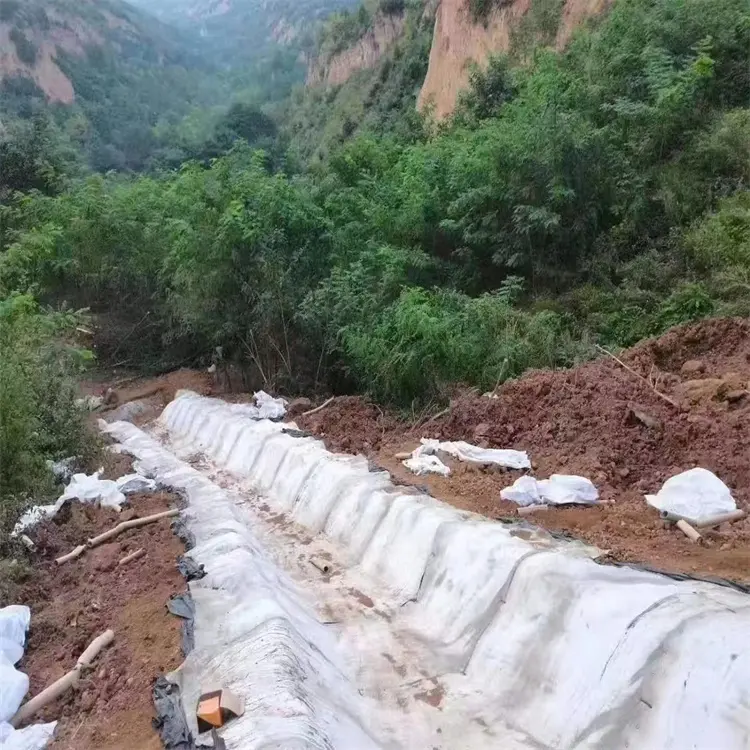

Deternine the construction sequene according to the direction of water flow, and locate the over laping parts; Construot ion starts from dounstream to upstreamwater flow. The overlapin installation of cloth to cloth usually requires a 10cm overlaping edge, and apropriate over laping methods are selected accordinrequired anti-sepage requirements. The treatnent of the shore adopts the method of burying the edge and fixing it with a drill rod, and it needs to be carriedthe top of the slope Excavate, bury, fill and drill. For large trenches, drilling is required at the bottom corners of the sides.
