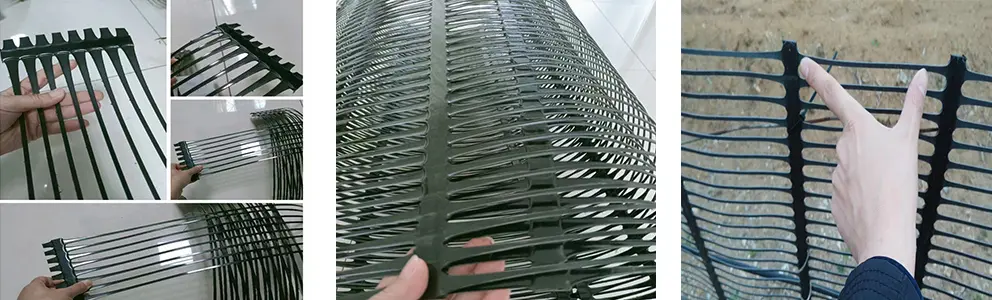

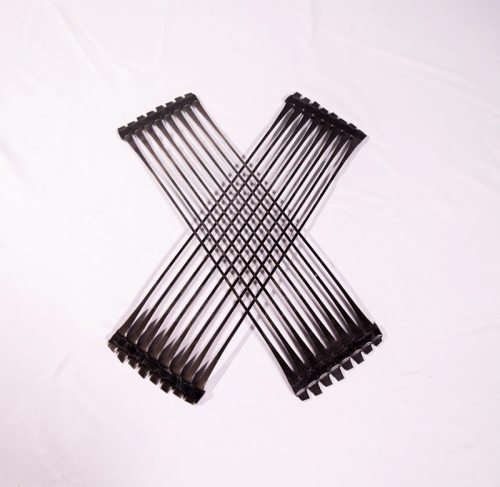

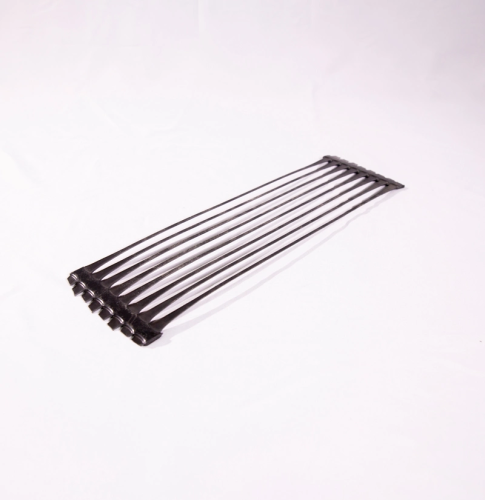

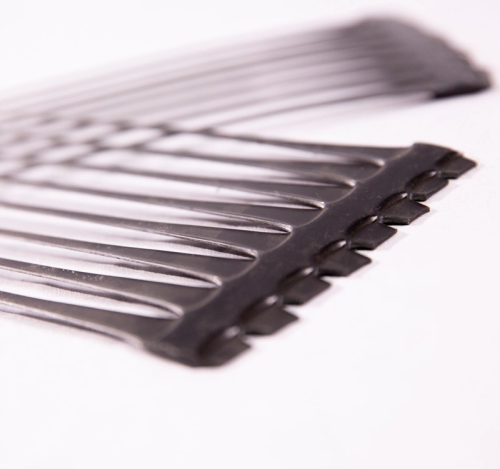

HDPE Uniaxial Geogrid
Introduction:
Hdpe Uniaxial geogrid is made of high molecular polymer after extruded and laminated and punched into regular mesh before longitudinal stretching. This process makes high molecule in direct line state in oblong oval net structure with uniform distribution and high node intensity.
Features:
• High tensile strength
• Low creep deformation
• Improving bearing capacity of retaining wall or dam
• Extending the project life
• Reducing floor area
• Shortening construction period, reducing cost and maintaining expense
Parameter:
| Uniaxial HDPE Plastic Geogrid | ||||
| Tensile Strength(KN/m) | Tensile Strength @2% Strain（KN/m） | Tensile Strength @5% Strain(KN/m) | Nominal Elongation | |
| ≥35 | ≥7.5 | ≥21.5 | ≤11.5% | |
| ≥50 | ≥12 | ≥23 | ||
| ≥80 | ≥21 | ≥40 | ||
| ≥120 | ≥33 | ≥65 | ||
| ≥160 | ≥47 | ≥93 | ||

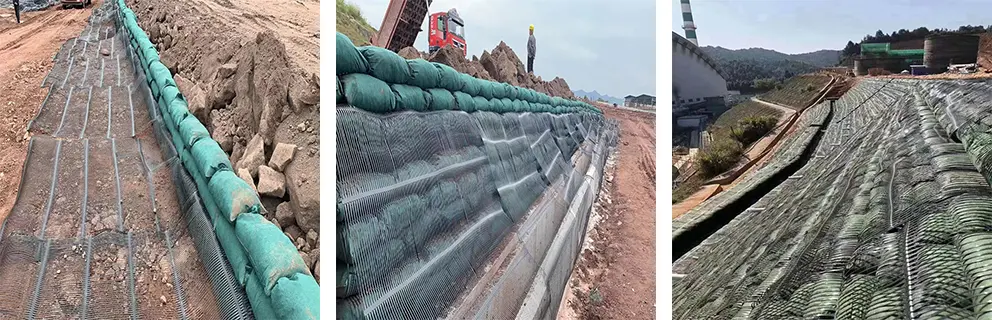

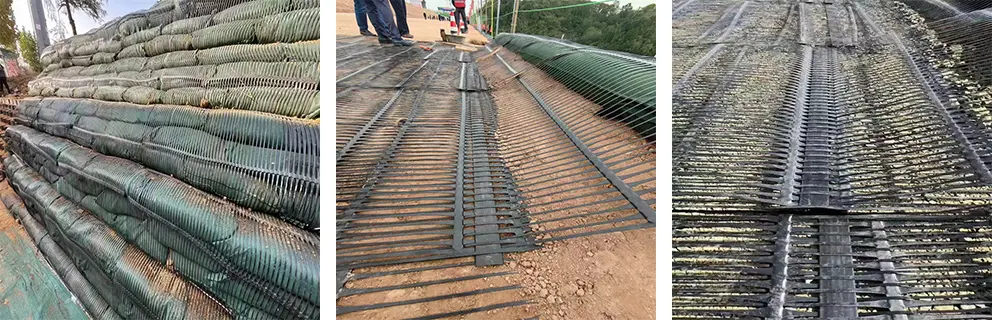

Application:
Enhance roadbed and effectively diffuse its load to improve its stability and bearing capacity and increase service life;
Prevent roadbed distortion and crack caused by the loss of roadbed materials;
Increase the self-supporting property of fill behind retaining wall, decrease the earth pressure of retaining wall, save cost, increase
service life and reduce maintenance expense;
Production Line:
Test Machine:

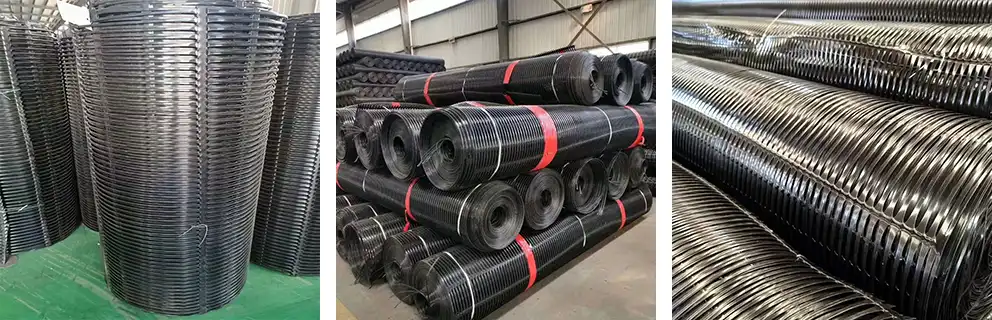

Warehouse:
Shippment:
Customer Visit:
