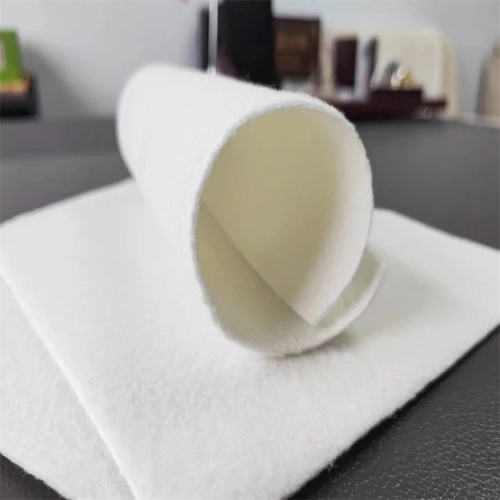

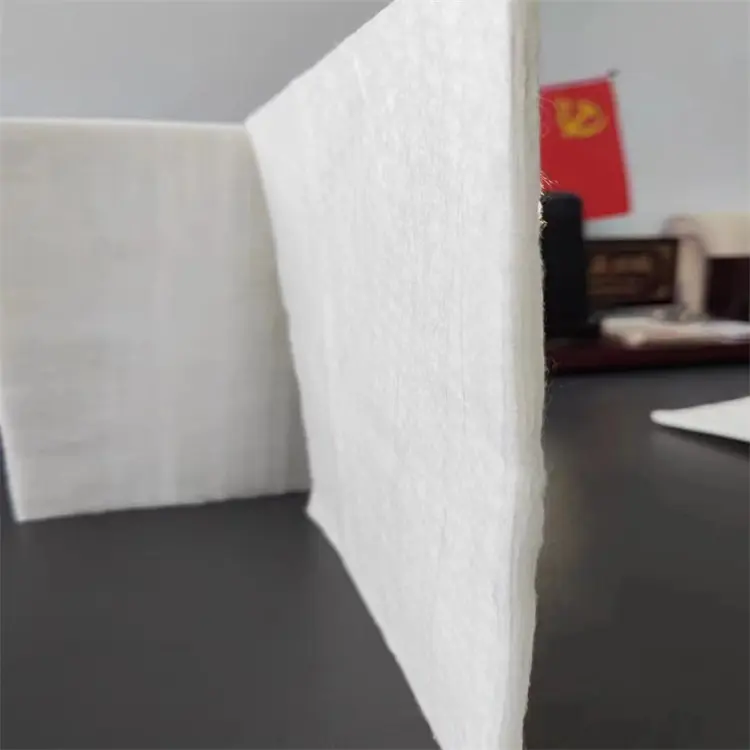

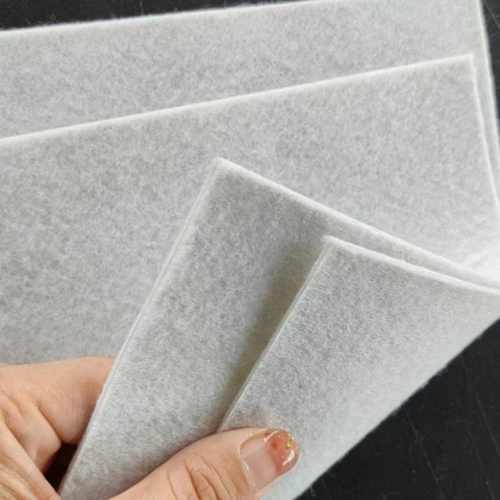

Geosynthetics-synthetic Staple Fibers Needlepunched Nonwoven Geotextile
Geosynthetics-synthetic Staple Fibers Needlepunched Nonwoven Geotextile

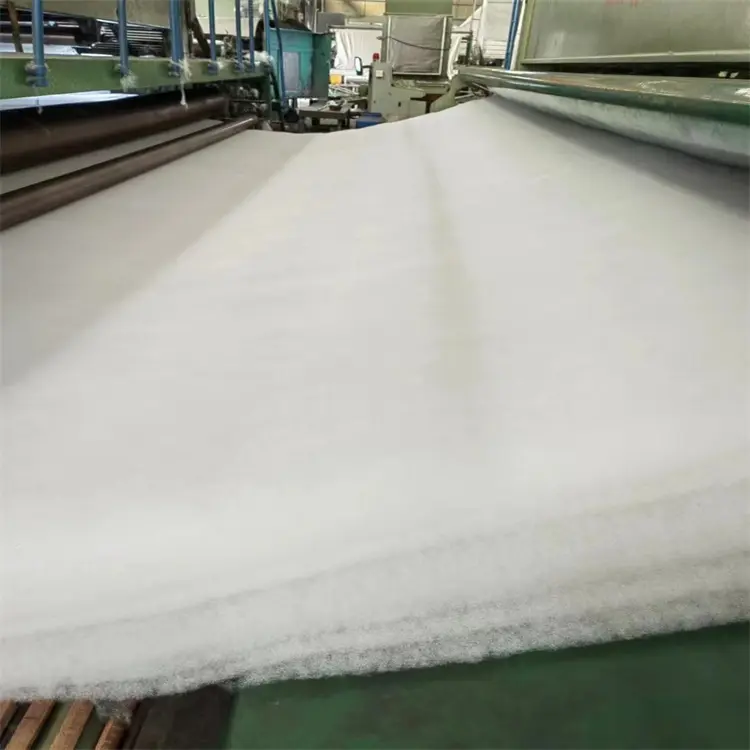

-Production process: Using polyester fibers or polyester staple fibers as the main raw materials, the fibers are loosened, combed, tangled, and laid in a non-woven production equipment, and then entangled with each other through needle punching technology to form a cloth like structure.
-Performance characteristics: It has excellent properties such as acid and alkali resistance, corrosion resistance, aging resistance, high strength, dimensional stability, and good filtration. At the same time, it also has characteristics such as ventilation, insulation, and water absorption.

-Specification parameters: The specification is generally 100-800g/m ², with a thickness of 0.9-5.0mm and an amplitude deviation of ± 5%. The breaking strength is 3.0-40KN/m, the CBR top breaking strength is 0.6-7.0KN, the equivalent pore size is 0.07-0.2mm, and the vertical permeability coefficient is K × (10 ⁻1 -10 ⁻³) cm/s (K=1.0-9.9).
| Serial number | Item\index\ specification | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark |
| 1 | Mass-area ratio deviation, % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| 2 | Thickness, mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
| 3 | Amplitude, deviation,% | -0.5 | |||||||||||
| 4 | Breaking strength, KN/m ≥ | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | MD CD |
| 5 | Breaking elongation,% | 25~100 | |||||||||||
| 6 | CBR bursting strength, KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
| 7 | Equifinal aperture mm | 0.07~0.2 | |||||||||||
| 8 | Vertical permeability coefficient, cm/s | K x(10-1~10-3 ) | K=1.0 ~9.9 | ||||||||||
| 9 | Ripping strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | MD CD |

-Main functions: including isolation, filtration, drainage, reinforcement, protection, etc., can prevent different materials from being lost or mixed, maintain structural stability, allow water flow to pass through, intercept soil particles, enhance soil tensile strength and deformation resistance, and protect soil from water flow erosion.

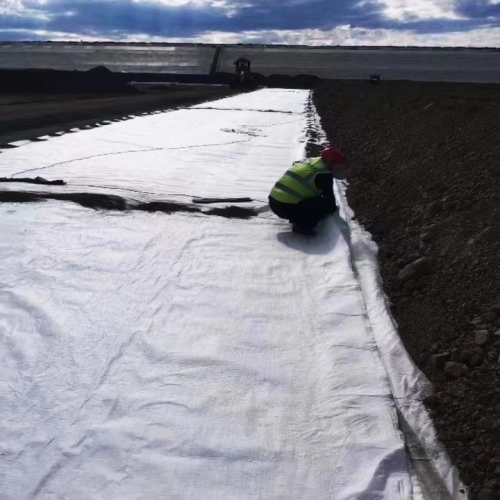

-Application areas: Widely used in water conservancy, highways, railways and other fields, such as river embankment slope protection, reservoir drainage, highway and railway roadbed reinforcement, and road construction and reinforcement in marshy areas.
Customer visit

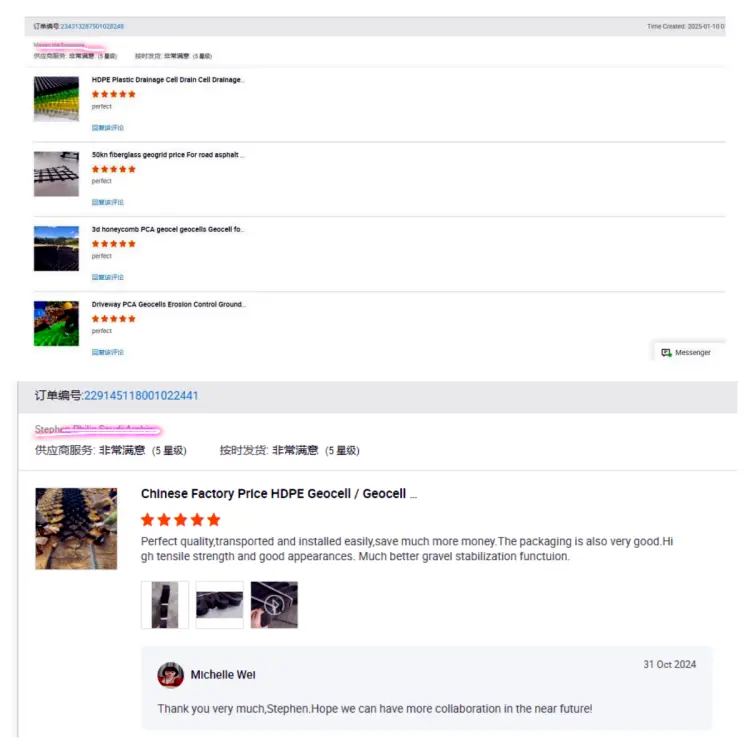

Customer Review
