HDPE Geocell

Geocell is the ideal solution for the most demanding load support and erosion control applications. Green faced retaining walls can be constructed using geocell, forming a more aesthetically sympathetic solution for retaining applications. Extremely versatile and adaptable, geocell provides effective and economical solutions in a wide variety of applications including ground stabilization, slope protection, retaining walls and channels.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

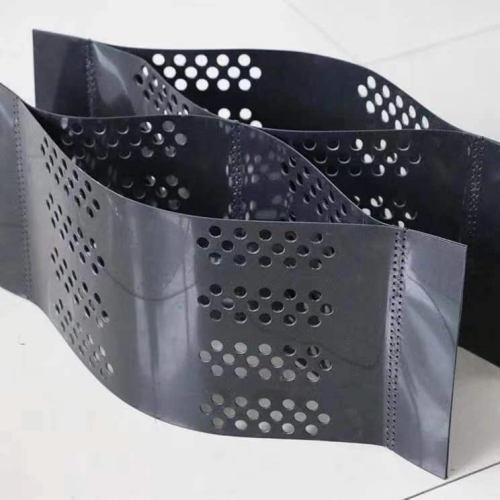

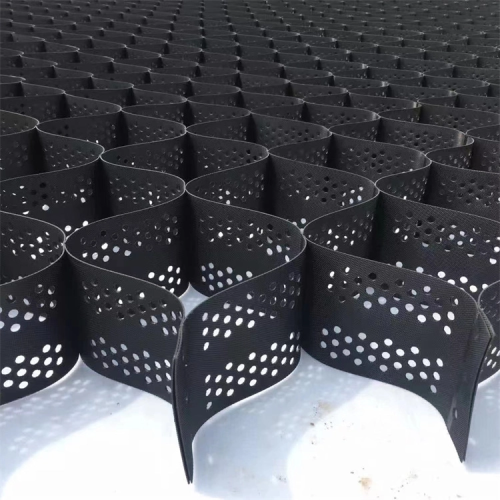

Geocell is a three-dimensional cellular confinement system manufactured from high-density polyethylene (HDPE) strips that are ultrasonically welded together to create a strong, lightweight expandable panel.

Initially developed through the US Army Corps of Engineers to assemble unpaved roads over susceptible ground, it dramatically improves the overall performance of infill substances throughout a vary of applications.

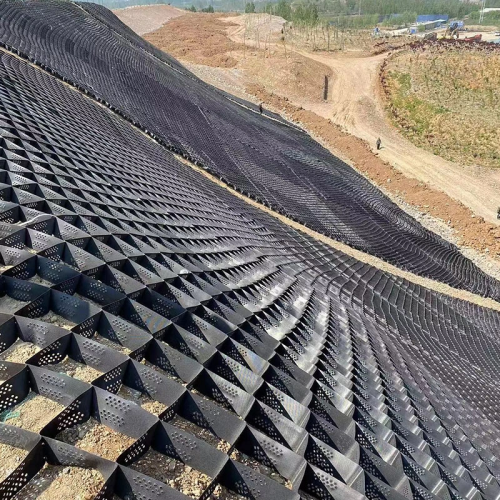

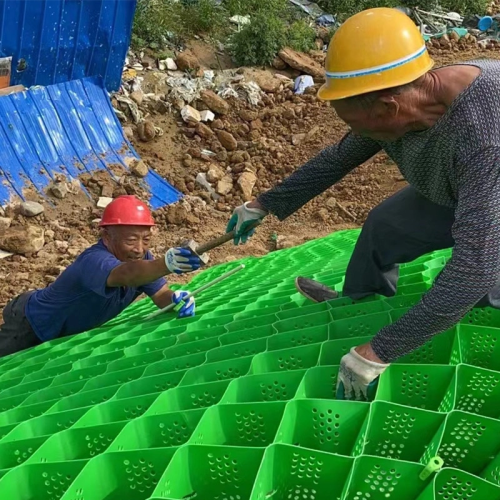

Geocell confines and reinforces vegetation on steep slopes via growing the soils herbal resistance to erosion and protects the root area layer all through germination.

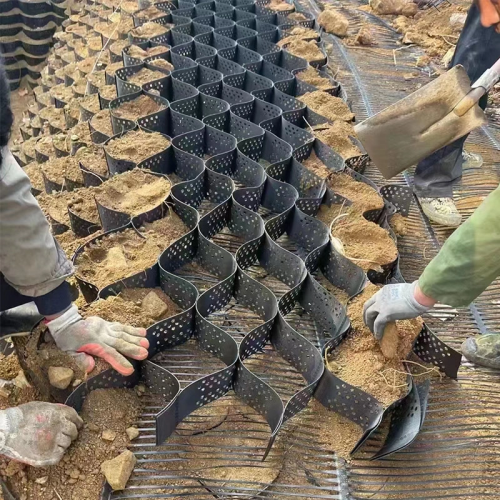

Its’ special hoop power and interconnecting telephone partitions structure a long lasting composite mattress that can be stuffed with frequent materials. The perforated telephone partitions motivate lateral drainage and frictional interlock, growing the structural overall performance of the system

Parameter:

Item	Property		Units	Value
Material	Polymer Density		g/cm3	0.94
		Carbon Black Content	%	2.0
		Oxidative Induction Time	Min	20
		Low Temperature Brittleness	℃	≤-50
		Vicat softening temperature	℃	≥112
		Environment Stress Crack Resistance F50	hours	≥800
Strip Properties	Sheet Thickness		mm	1.1/1.2/1.5
		Sheet Tensile Strength	Mpa	≥20
		Sheet Surface	/	Smooth/Textured Perforated/ Not perforated
		Color	/	Black/Yellow/Green
		Cell Depth	mm	50/75/100/150/200/250
Seam Properties	Seam Peel Strength		N/10cm	≥1000

Feature:

➢Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different

geological conditions, such as saline soil, desert, etc.

➢ Wide temperature range, excessive tensile strength, accurate tension and toughness, desirable load potential and anti-erosion ability.

➢ Size is exceptionally stable, exchange the peak and welding distance can meet the desires of specific projects.

➢ Retractile, effortless to transport.

➢ Easy to use, can use the nearby substances and attain speedy construction, minimize development costs.

Application:

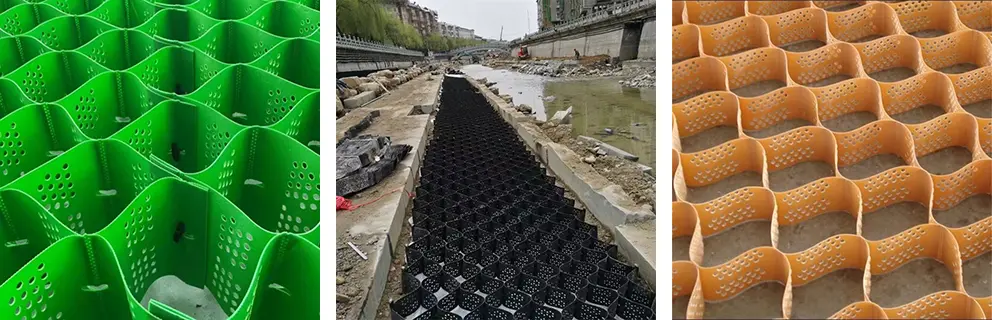

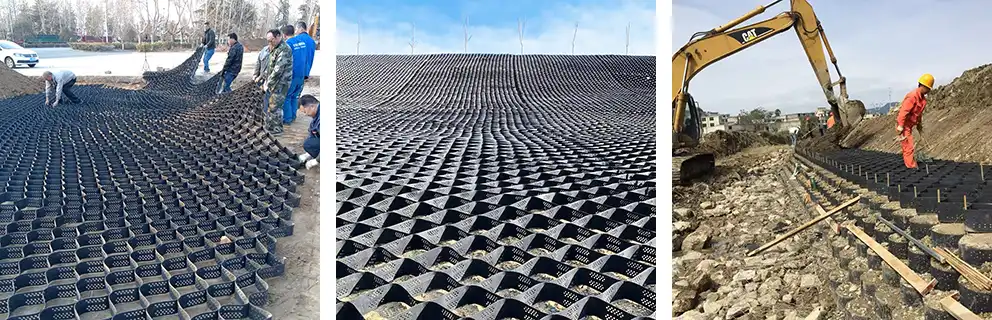

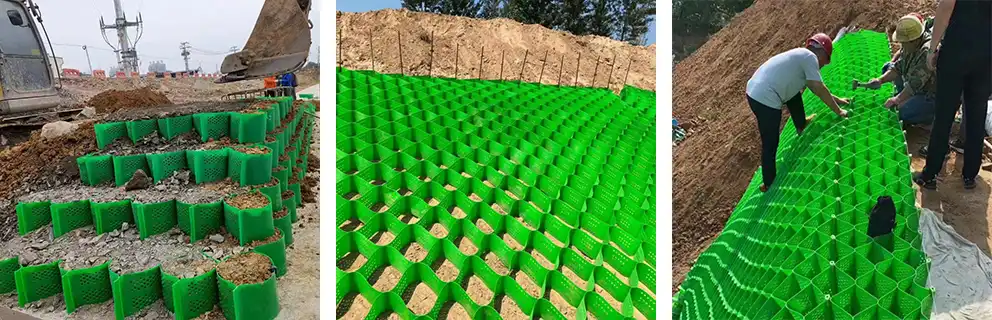

• Slopes • Channels • Vegetative soil crammed channel • Aggregate crammed channel • Concrete crammed channel • Embankments • Retaining partitions • River banks
