Tree Root Protection Area

The advantages of tree root protection are multifaceted, impacting ecological health, urban sustainability, agricultural productivity, and infrastructure preservation. Here’s a structured overview of key benefits: 1. Ecological and Environmental Benefits - Biodiversity Support Protected roots maintain soil structure and microbial ecosystems, fostering mycorrhizal symbiosis (e.g., increased nutrient uptake via fungi like Rhizophagus irregularis), which enhances plant health and supports diverse soil organisms. - Carbon Sequestration Healthy roots promote tree longevity and vigor, enabling greater carbon storage in biomass and soil, critical for mitigating climate change. - Soil Conservation Roots stabilize soil, reducing erosion (e.g., in arid zones, drip irrigation and hydrogels protect roots while retaining moisture, preventing desertification). 2. Urban and Infrastructure Preservation - Cost Reduction for Infrastructure Root barriers (e.g., HDPE sheets) and permeable paving prevent root-induced damage to sidewalks, pipelines, and foundations, cutting repair costs by up to 70% in urban areas (e.g., Beijing case studies). - Improved Urban Greenery Survival Techniques like root zone mapping (GPR/BIM) and temporary fencing during construction reduce root disturbance, increasing transplant survival rates by 35% (e.g., Hangzhou gardens) and minimizing soil compaction. - Aesthetic and Functional Urban Spaces Root-friendly designs (e.g., permeable pavement, root plates) allow trees to thrive in compact urban environments, enhancing green infrastructure and air quality.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction

Tree root protection is designed to shield a tree’s root system. Within this area, safety of the root device and soil is a priority. The place is calculated to incorporate enough roots to make certain the viability of the tree.

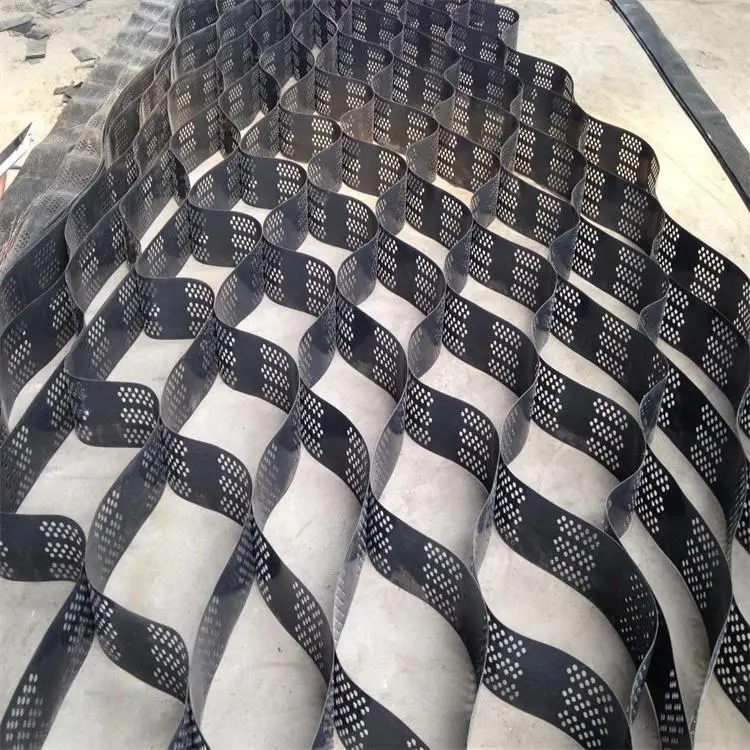

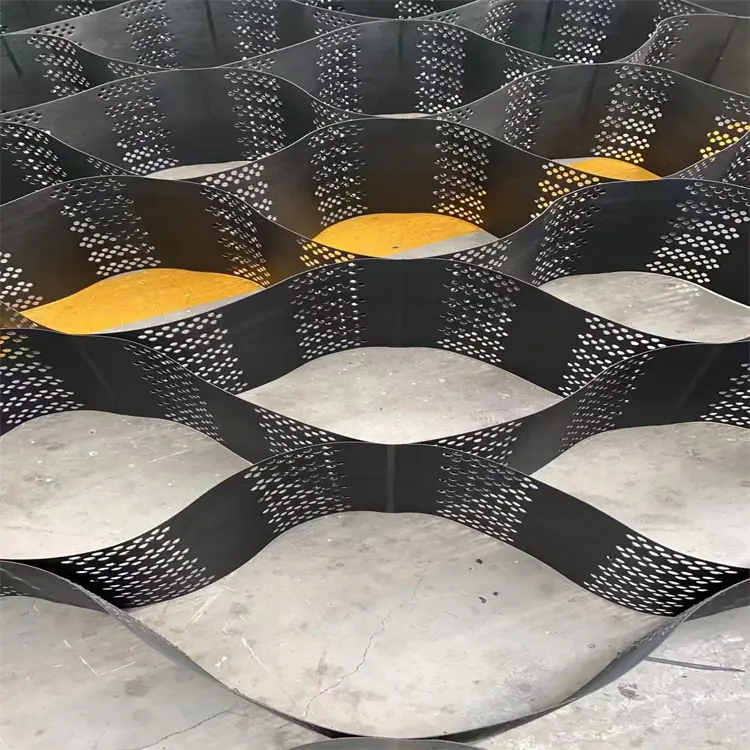

It has cellular structure and formed by the strong welding of polymer strips.It’s folded for transport and unfolded in application flexibly.Sand,gravel,soil or other material is filled in the geocell.It forms strong lateral constraints and large stiffness of the structure.Inspired by Mother Nature, these honeycombed shaped restraint systems contain perforations which allow water, or other fluids to pass through it; anchoring the in-fill into the soil, or subgrade firmly.

Features

Dynamic mechanical modulus (elastic stiffness): A greater modulus presents higher confinement and resistance to deformation below dynamic loading .

Creep resistance: Unless geocell rolls can hold their structure over a duration of time beneath sustained loads, they would be an luxurious fabric to work with. This is the place HDPE geocells acquire gain with incredible creep power properties.

Tensile strength: Higher tensile power permits the geocell to higher face up to deformation underneath repetitive, and special load kinds – a key component in deciding on the proper product.

Environmental durability: our merchandise are resistant to UV radiation, and additionally handled to deal with heat, and oxidation to keep away from degradation over a duration of time.

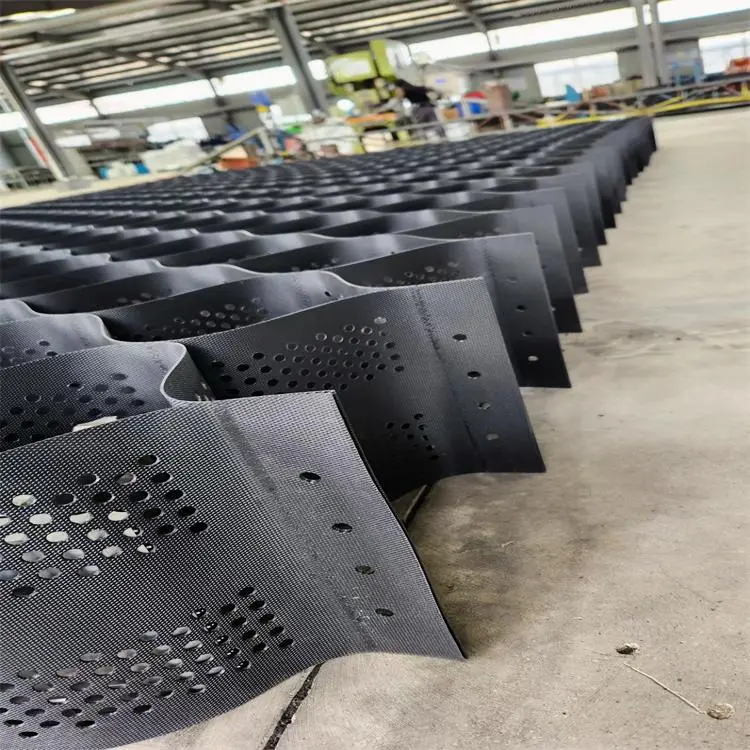

Tree Root Protection (5).jpg

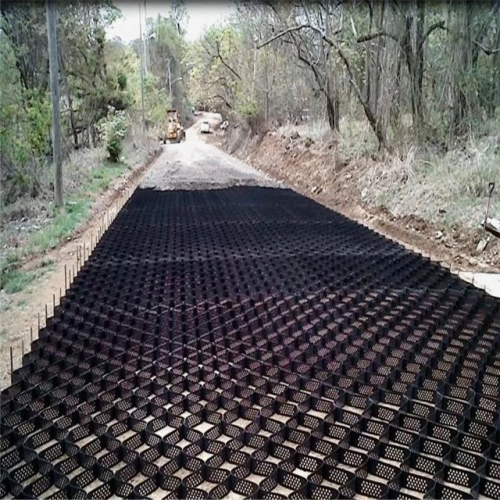

Application Installation

Removal of surface vegetation including turf can be removed using hand tools.

No topsoil should be excavated or removed.

The stabilising geogrid or geocomposite should be laid directly over the soil.

Edge boards may be used to contain the subbase and provide edge restraint. These will be pegged in place with wooden stakes.

The subbase material should be placed by hand or by lightweight tracked plant. The subbase should be cascaded forward onto the geogrid with the tracked plant operating only on top of the placed subbase. The initial layer thickness will be normally 150mm.

Tracking over by the lightweight plant will facilitate the aggregate interlock with the geogrid to establish the stabilised layer whilst minimising the compaction of the soil below.

A final roll with a small non-vibrating roller will firm the surface. Tree Root Protection (7).jpg

Parameters

Item	Property		Units	Value
Material	Polymer Density		g/cm3	0.94
		Carbon Black Content	%	2.0
		Oxidative Induction Time	Min	20
		Low Temperature Brittleness	℃	≤-50
		Vicat softening temperature	℃	≥112
		Environment Stress Crack Resistance F50	hours	≥800
Strip Properties	Sheet Thickness		mm	1.1/1.2/1.5
		Sheet Tensile Strength	Mpa	≥20
		Sheet Surface	/	Smooth/Textured Perforated/ Not perforated
		Color	/	Black/Yellow/Green
		Cell Depth	mm	50/75/100/150/200/250
Seam Properties	Seam Peel Strength		N/10cm	≥1000
