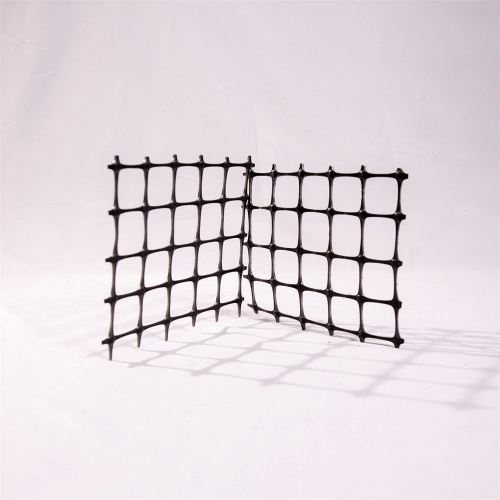

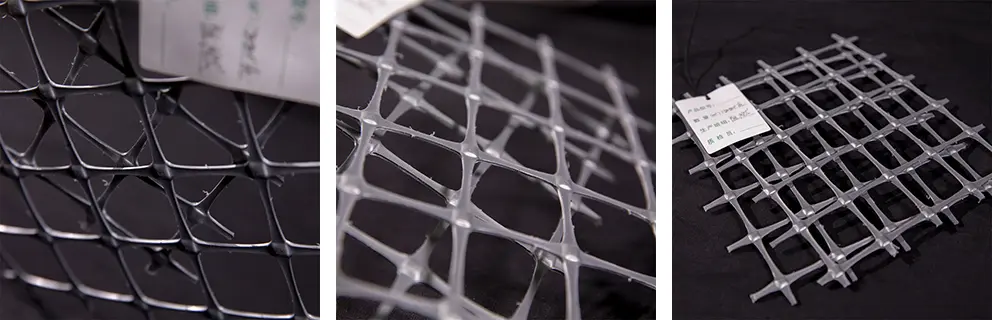

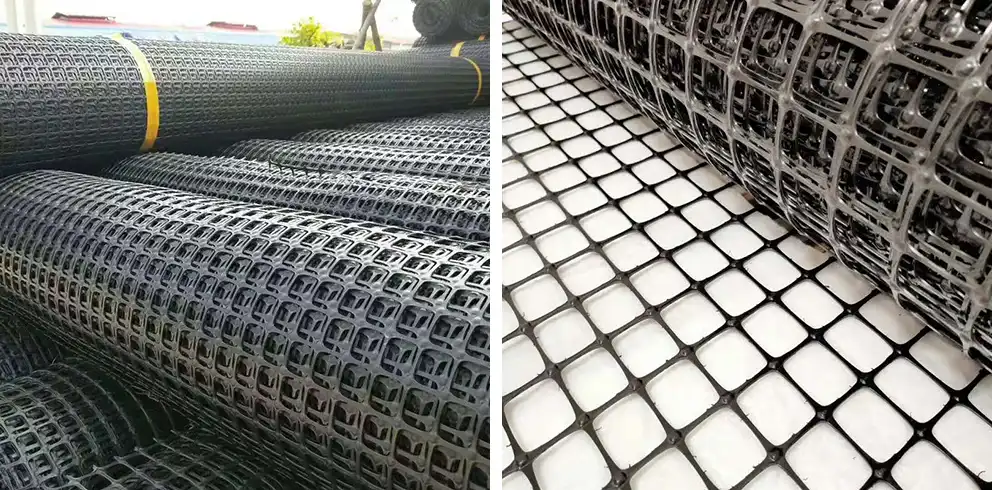

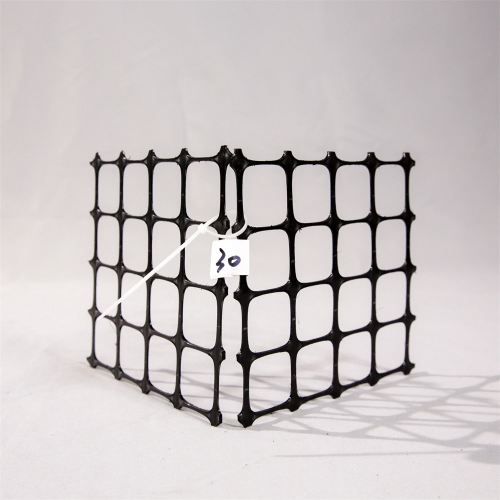

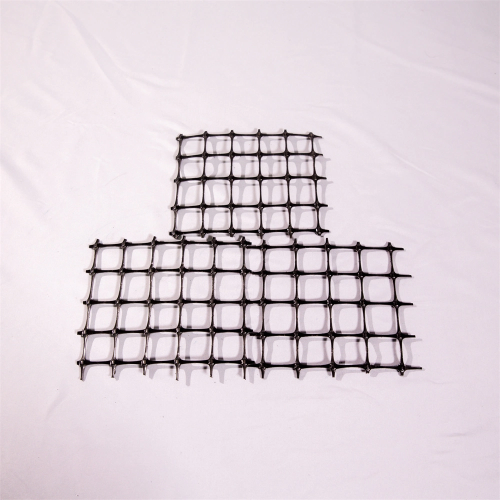

PP Biaxial Geogrid
Introduction:
High-strength Biaxial plastic geogrid for road base and sub-base stabilization. This geogrid is being manufactured from polypropylene raw materials: They are polymer coated for high UV-stability and low installation damage. This kind of material has high tensile longitudinally and horizontally, which can be used to reinforce the basement.
Features:
1. High tensile strength in the warp and weft directions.
2. Low elongation.
3. Good anti-aging, acid and alkali-resistance
Parameter:
| Items | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Mass-area ratio，g/m | 200±20 | 250±20 | 350±20 | 540±20 | 610±20 | 720±20 |
| Width, m | 1-6 | |||||
| Longitudinal stretching force at yield per linear meter，KN/m≥ | 15 | 20 | 30 | 40 | 45 | 50 |
| Lateral stretching force at yield per linear meter, KN/m≥ | 15 | 20 | 30 | 40 | 45 | 50 |
| Longitudinal elongation at yield，%≤ | 16 | |||||
| Lateral elongation at yield，%≤ | 13 | |||||
| Stretching force for 2% longitudinal extensibility，KN/m≥ | 5 | 8 | 11 | 13 | 16 | 17.5 |
| Stretching force for 2% lateral extensibility，KN/m≥ | 7 | 10 | 13 | 15 | 20 | 17.5 |
Application:
It can be applied in all kinds of roads, railways, airports to enhance the roadbed.
It can be applied in a large car park and terminal freight yard, etc., to strengthen the foundations of a permanent load.
It can be applied in rail, road slope’s protection.
It can be applied to enhance the culvert.
It can be applied as a secondary enhancement after the uniaxial geogrid soil enhancement, further enhance the soil, prevent soil erosion.
It can be applied in mining, tunnel reinforcement.
