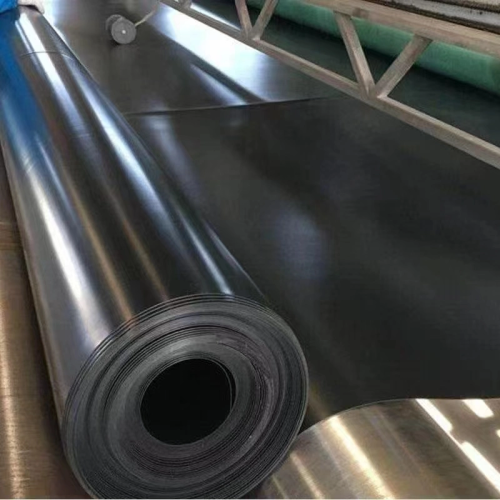

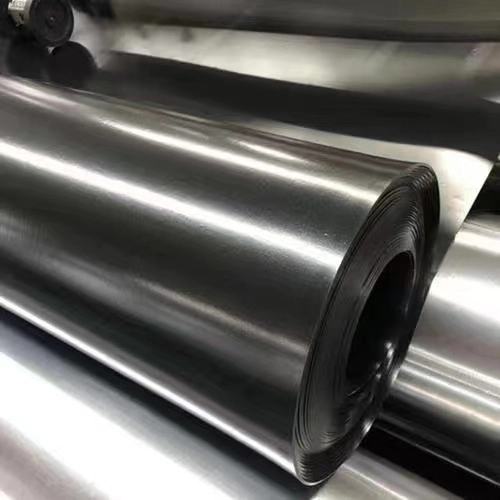

HDPE Geomembrane
Introduction:
An HDPE geomembrane is an essentially impermeable liner composed of high-density polyethylene polymer. These liners are used for geotechnical and environmental engineering projects that require containment and protection from contamination.HDPE geomembrane liner is the preferred product for lining projects. HDPE liner is resistant to many different solvents and are the most widely used geomembrane liner in the world. Although HDPE geomembrane is less flexible than LLDPE, it provides higher specific strength and can withstand higher temperatures. Its exceptional chemical and ultraviolet resistance properties make it an extremely cost-effective product.
Parameter:
| Thickness | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 | |
| Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | |
| Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 | |
| Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 | |
| Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | |
| Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | |
| Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 | |
| Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 | |
| Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | |
| Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
Feature:
Good physical and mechanic performance
High tearing resistance, strong deformation adaptability
Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
Good adaptability to high and low temperature, non-toxicity, long service life
Good waterproof, drainage, anti-seepage and damp proof effects
Complete width and thickness specifications, low cost and easy installation.

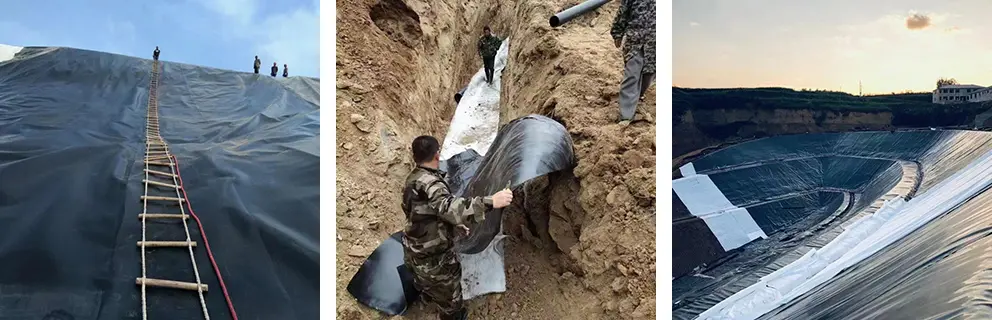

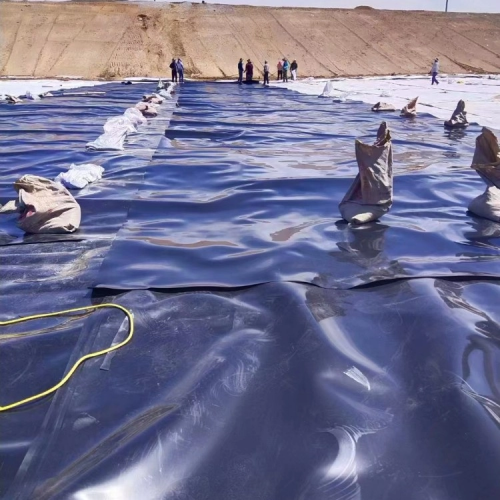

Application:
1.Irrigation ponds, canals, ditches & water reservoirs
2.Mining heap leach & slag tailing ponds
3.Golf course & decorative ponds
4.Landfill cells, covers, & caps
5.Wastewater lagoons
6.Secondary containment cells/systems
7.Liquid containment
8.Environmental containment
9.Soil Remediation

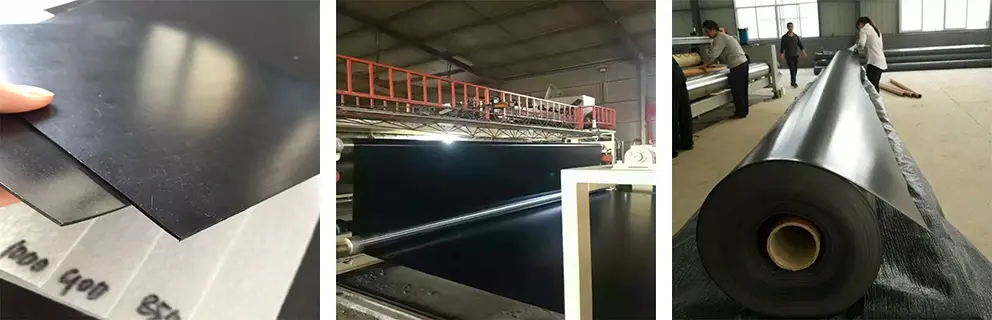

Production Line:
Test Machine:
Warehouse:
Shippment:
Customer Visit:
